Constant Heat Sealer VHS Mark III - Pedestal Mounted Heat Sealing Machine
- Sku: SP-PM-003-A
- Barcode:
The VHS Mark III Constant Heat Sealer is a pedestal-mounted heat sealing machine designed for efficient, consistent sealing of a range of flexible packaging materials. Featuring twin heated, fully earthed sealing jaws, solid-state electronics and an accurate temperature gauge reaching up to 200°C, it provides reliable heat sealing for demanding packaging applications.
With a 15mm wide seal and seal length options from 200mm to 600mm, the VHS Mark III can accommodate different bag and packaging requirements. It is suitable for sealing polypropylene, cellophane, foil laminate bags and tubing, with supported film thicknesses of up to 2 × 250 microns.
The constant heat design keeps both sealing jaws continuously heated, allowing the machine to be ready for repeated sealing applications without waiting for the jaws to heat between seals. This makes it particularly suitable for high-volume packaging environments where speed and consistency are important.

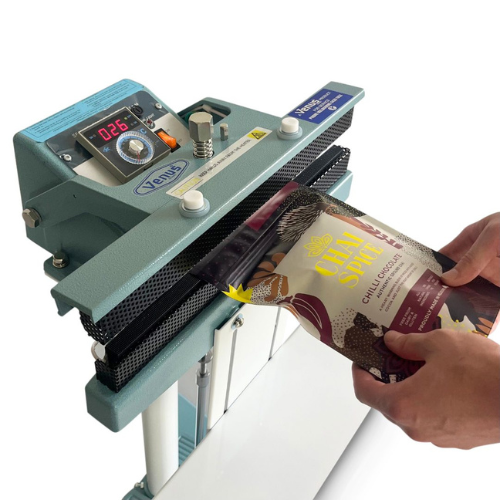

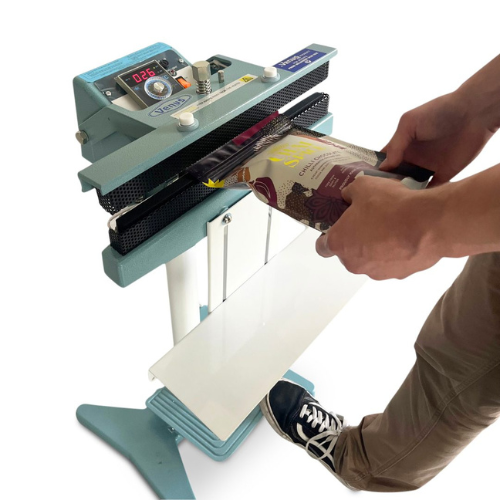

The VHS Mark III is pedestal mounted and foot pedal operated, allowing the operator to use both hands to position and hold the packaging material during sealing. The sealing jaws are also Teflon coated, helping provide reliable sealing performance.
Available in 200mm, 300mm, 400mm and 600mm seal lengths, the VHS Mark III provides a choice of configurations to suit different packaging operations.
Key Features
- Constant heat sealing system for continuous operation
- Twin heated, fully earthed jaws

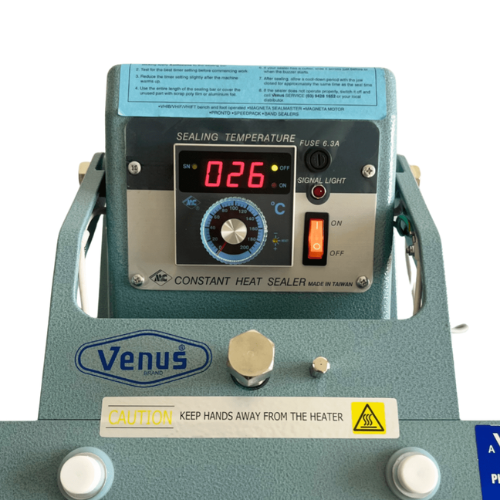

- Accurate temperature gauge with adjustment up to 200°C
- 15mm wide heat seal
- Available in 200mm, 300mm, 400mm and 600mm seal lengths
- Suitable for film thicknesses up to 2 × 250 microns
- Teflon-coated sealing jaws
- Solid-state electronic controls

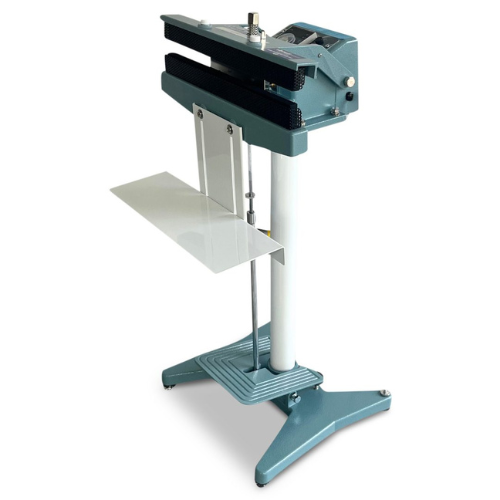

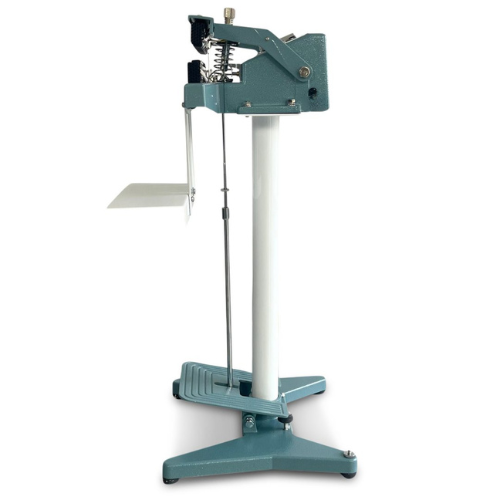

- Pedestal mounted design
- Foot pedal operated for hands-free sealing control
- Suitable for polypropylene, cellophane, foil laminate bags and tubing
- Designed for efficient, repeated sealing applications
- Pedestal and pedal extension kit also available
Specifications
| Specification | Details |
|---|---|
| Product | VHS Mark III Constant Heat Sealer |
| Machine Type | Pedestal-style constant heat sealer |
| Seal Length Options | 200mm, 300mm, 400mm, 600mm |
| Seal Width | 15mm |
| Maximum Film Thickness | 2 × 250 microns |
| Sealing Jaw | Twin heated jaws |
| Jaw Coating | Teflon coated |
| Temperature | Up to 200°C |
| Operation | Foot pedal operated |
| Mounting | Pedestal mounted |
| Suitable Materials | Polypropylene, cellophane, foil laminate bags and tubing |
| Electronics | Solid-state electronics |
Available Variants & Pricing
| Variant | Seal Length | Price |
|---|---|---|
| VHS Mk III 200 | 200mm | $899 AUD |
| VHS Mk III 300 | 300mm | $999 AUD |
| VHS Mk III 400 | 400mm | $1,299 AUD |
| VHS Mk III 600 | 600mm | $1,499 AUD |
Why Choose the VHS Mark III?
Built for Consistent, Efficient Sealing
For businesses sealing a high volume of bags or flexible packaging, a constant heat sealer can help streamline repetitive packaging tasks.
The continuously heated jaws allow the machine to remain ready for repeated sealing, while the foot pedal operation allows the operator to use both hands to position packaging accurately.
With four seal-length options, you can select the configuration that best suits the size of your packaging and sealing requirements.
Ideal For
- Packaging and manufacturing businesses
- Food packaging operations
- Retail packaging
- Industrial packaging
- Warehouses
- Production environments
- Polypropylene bag sealing
- Cellophane packaging
- Foil laminate bags
- Flexible packaging tubing
